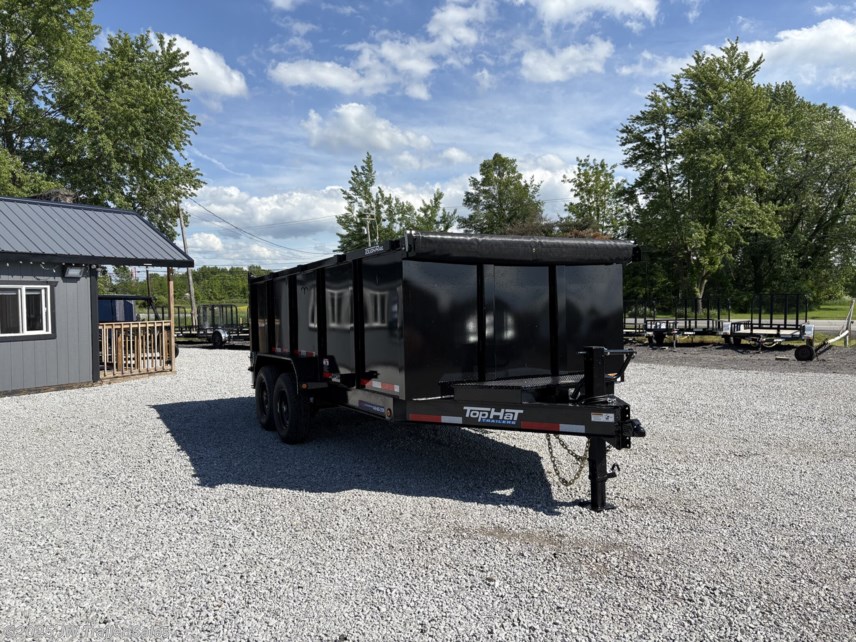

New 2025 Top Hat 7x16 Stock# 251808

Empty weight 4280#

GVWR 14000#

2 - 7000# Dexter

2 - Electric Brakes Nev-R-Adjust

E-Z Lube - 1/2 Cambered

Standard Equipment

• Coupler: 2 5/16" Forged Adjustable 5/Position
• Coupler: 2 5/16" Round Adjustable on GN
• Jack: 10000# Drop Leg
• Jack: Dual 10000# Drop Leg on GN
• Fenders: HD Diamond Plate Straight
• Floor: 7 GA Sheet Metal
• Width: 83" Inside Box
• Brake: Electric All Wheel
• Break Away Unit w/Charger
• DOT Reflective Tape
• Primed & Painted Underside
• Doors: Double Action (Dual Swing Out/Spreader Gate. NA w/High Sides.)
• Ramp Pockets w/6' Ramps
• 5/8" D-Rings in Box (4)
• Spare Rack
• Sealed Flush Mount LED Lights
• Wiring Harness
• Lockable Battery/Pump Box
• Deep Cycle 12V Marine Battery w/110V-5 Amp Charger
• Tarp

Frame Structure

• Frame & Tongue: 8" I-Beam Integrated
• Neck & Risers: (GN Model) 10" I-Beam
• Sides: 24" Tall 10 GA Sheet Metal w/Toprail
• Toprail: Rigid 3x2x7 GA Rectangular Tubing
• Uprights: 24" OC
• Crossmembers: 3" Channel 16" OC
• Tarp Bracket & Tie Downs
• Loading Height 4" Lower than DP Model
•
• Dump Components
• Hoist: Scissor Lift
• Power Up/Power Down
• Control: Pistol Grip w/10' Cord
• Safety Prop
• Caulked Seams on Dump Body
